  • 产品名称: N Type Male Crimp Connector For LMR240 Cable
  • 产品名称: Model Number: N-C-J240

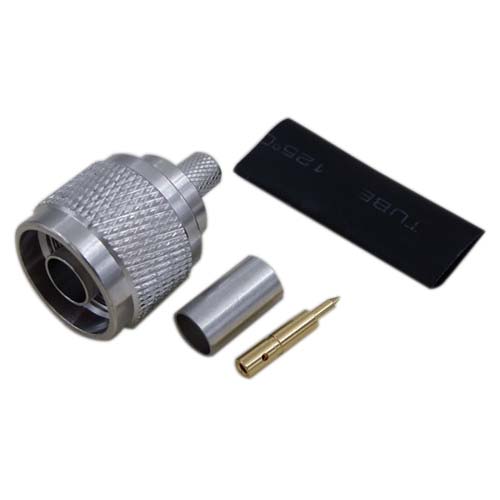

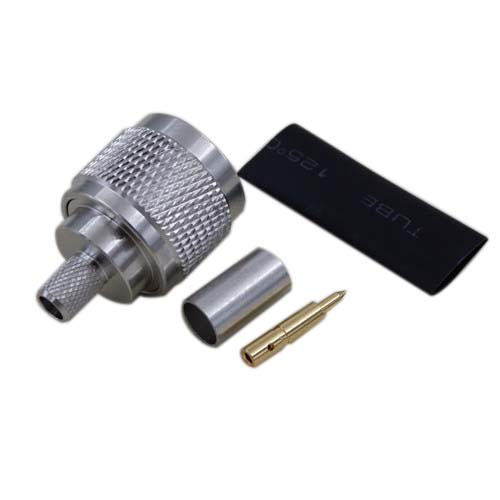

         N Male Crimp Connector For LMR240 Cable

       (Contact attachment:Inner:soldering ;Outer:crimp)

Model No.  N-C-J240
Interface  IEC 60169-16
Electrical
Characteristic Impedance   50ohm
Frequency Range                                             DC-11GHz
VSWR          ≤1.15 @DC-3GHz;≤1.25@3-6GHz
Dielectric Withstanding Voltage  ≥2500V RMS,50Hz,at sea level
Working Vlotage   ≤1000V RMS,50Hz,at sea level
Dielectric Resistance    5000MΩ
Contact Resistance    Center Contact 1mΩ   Outer Contact 0.25 mΩ
Mating  —
Mechanical
Durability   Mating cycles  500
Material and Plating
Parts Name  Material   Plating
Body  Brass   Tri-alloy(CuSnZn)
Insulator   PTFE  —
Center conductor   Phosphor Bronze    Au
Coupling Nut   Brass   Tri-alloy(CuSnZn)
Gasket   Silicone Rubber   —
Ferrule Annealed Copper  Tri-alloy(CuSnZn)
Environmental
Temperature Range   _40 - + 85
Weatherproof Rate       IP67
RoHS Compliant    Yes
Noted:  It can also be suited to CNT240,WCX240,HPF240 or equivalent cables.
