  • 产品名称： N Type Female Bulkhead Windows Crimp Connector For RG58 Cable
  • 产品名称： Model Number: N-C-KY3

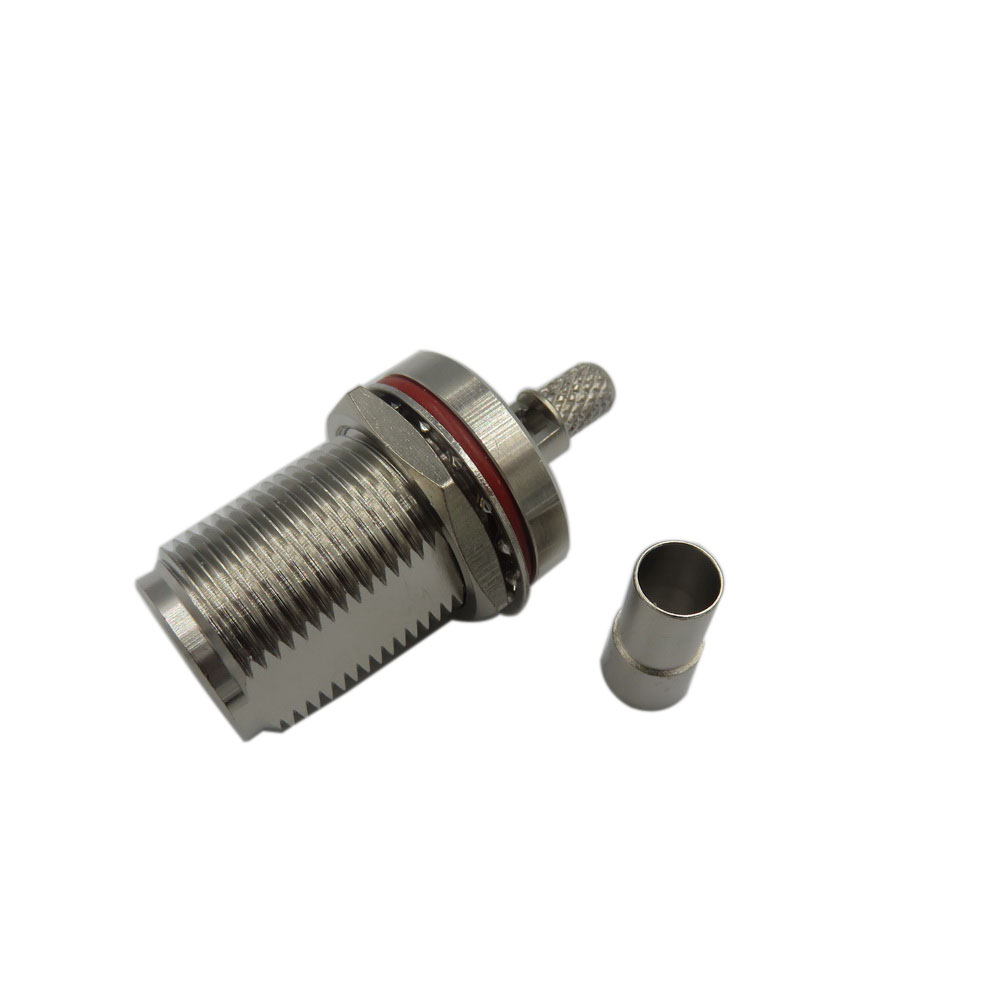

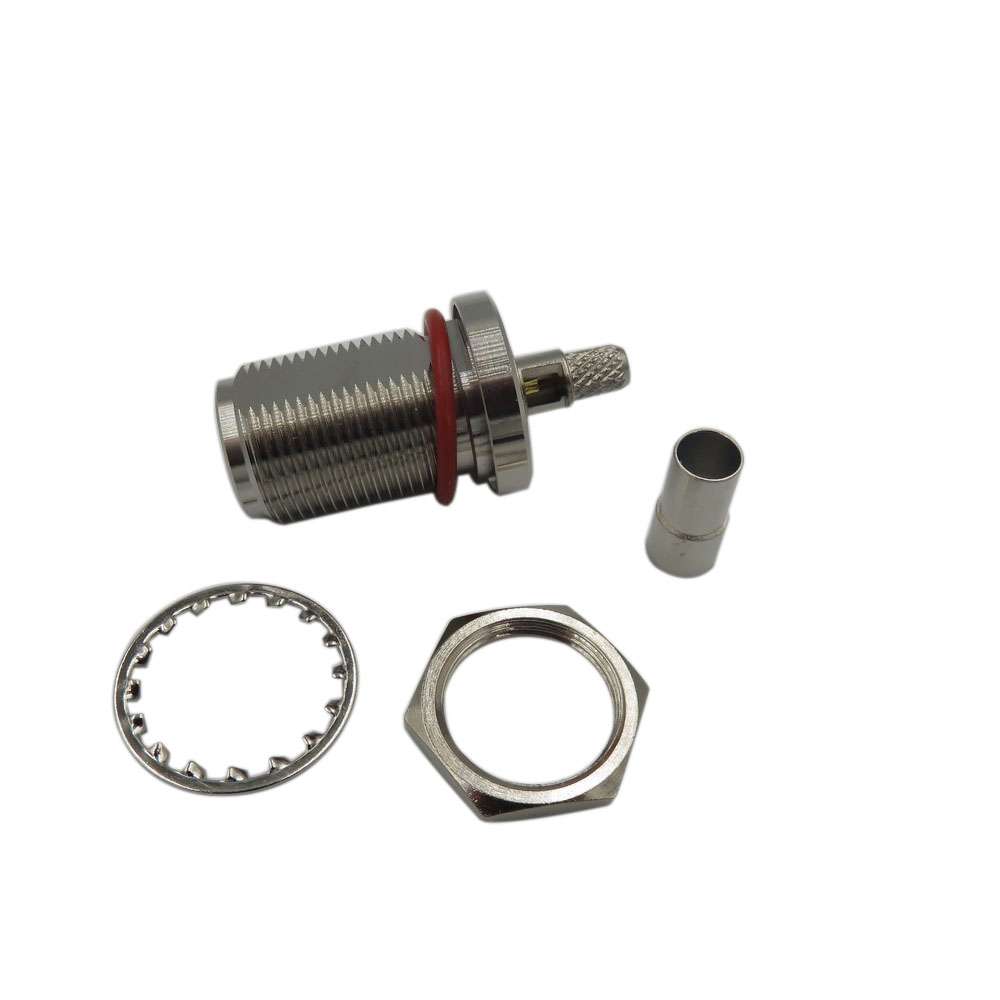

     N Type Female Bulkhead Windows Crimp Connector For RG58 Cable

            (Contact attachment:Inner:soldering ;Outer:crimp)

Model No.  N-C-KY3
Interface   IEC 60169-16
Electrical
Characteristic Impedance   50ohm
Frequency Range                                            DC-11GHz
VSWR           ≤1.25 @DC-3GHz
Working Vlotage   ≤350V R.M.S,at sea level
Dielectric Withstanding Voltage  ≥750 V R.M.S,at sea level
Dielectric Resistance    ≥5000MΩ
Contact Resistance    Center Contact ≤1mΩ   Outer Contact ≤0.25 mΩ
Mating  —
Mechanical
Durability   Mating cycles  ≥500
Material and Plating
Parts Name  Material  Plating
Body  Brass   Ni
Insulator   PTFE —
Center conductor   Phosphor Bronze   Au
Fastening Nut  Brass  Ni
Gasket   Silicone Rubber  —
Washer Brass  Ni
Ferrule Annealed Copper Ni
Environmental
Operating Temperature ﹣45 ℃-+85  ℃
Weatherproof Rate      IP67
RoHS Compliant   Yes
