  • 产品名称： N Type Male Clamp Connector For Rg58 Cable
  • 产品名称： Model Number: N-J3

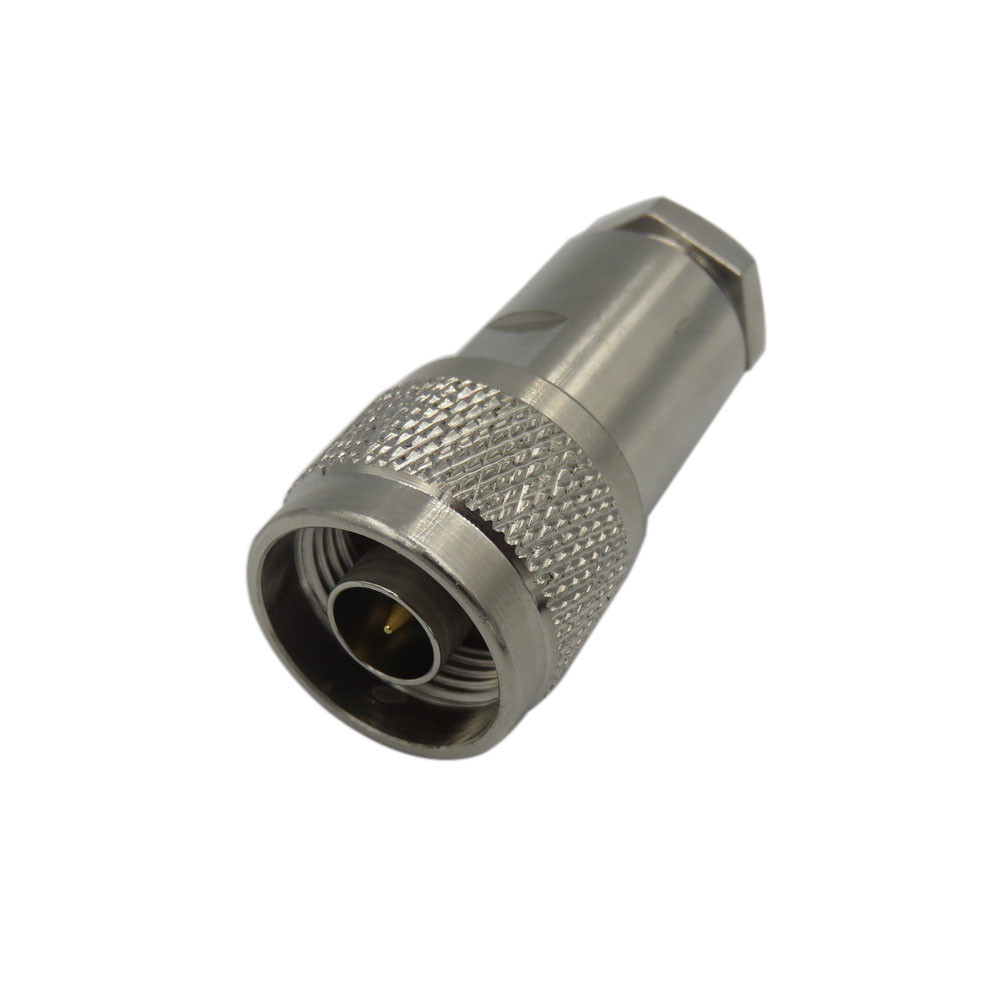

             N Type Male Clamp Connector For RG58 Cable

         (Contact attachment:Inner:soldering ;Outer:clamp)

Model No.  N-J3
Interface  IEC 60169-16
Electrical
Characteristic Impedance   50ohm
Frequency Range                                           DC-11GHz
VSWR           ≤1.25 @DC-3GHz
Working Vlotage   1000V RMS,50Hz,at sea level
Dielectric Withstanding Voltage  ≥2500V RMS,50Hz,at sea level
Dielectric Resistance    ≥5000MΩ
Contact Resistance    Center Contact ≤1mΩ   Outer Contact ≤0.25 mΩ
Mating  —
Mechanical
Durability   Mating cycles  ≥500
Material and Plating

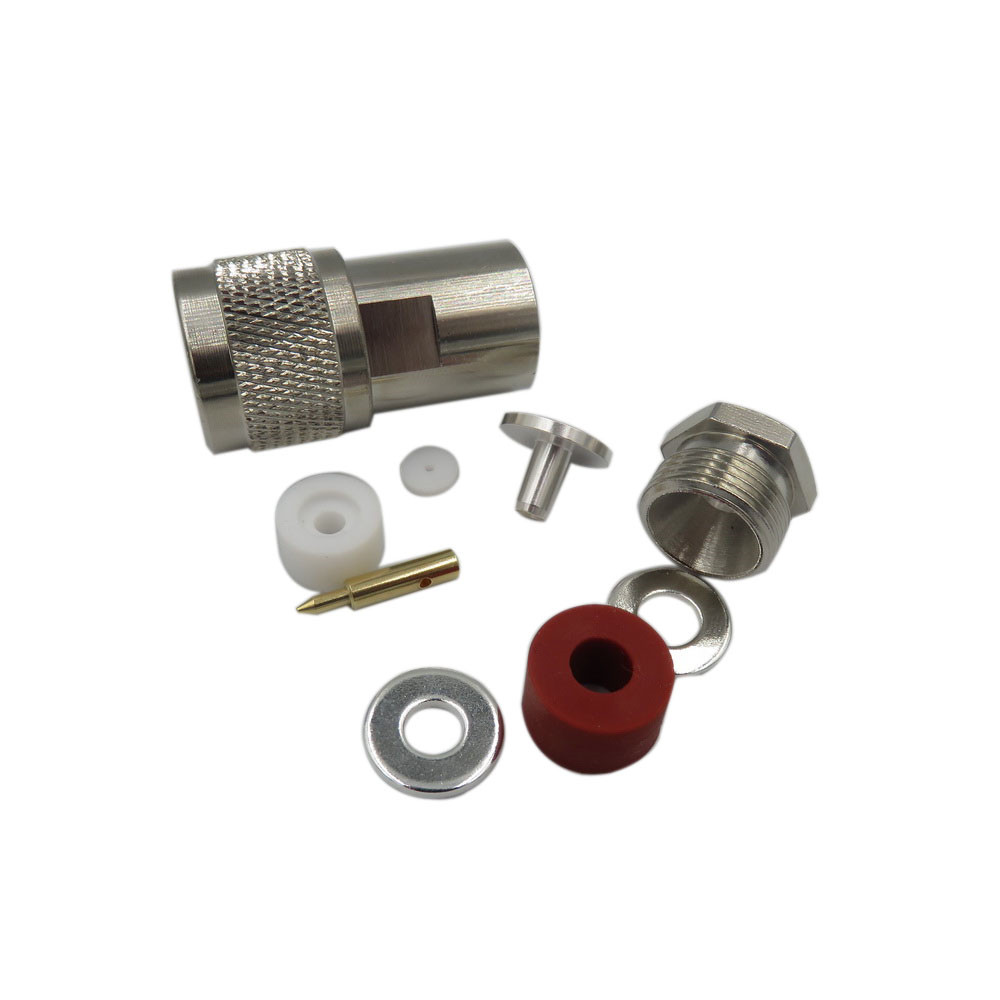

Parts Name  Material   Plating
Body  Brass   Ni
Insulator   PTFE  —
Center conductor   Phosphor Bronze    Au
Coupling nut   Brass   Ni
Back nut  Brass   Ni
Thick washer  Brass   Ag
Thin washer  Brass   Ag
Cable clamp  Brass   Ag
Sealing cap  Brass   Ni
Gasket   Silicone Rubber   —
Environmental
Operating Temperature  ＿40 ℃-+85  ℃
Waterproof Rate       IP67
RoHS Compliant  Yes
