  • 产品名称: SMA Female Crimp Bulkhead Connector For RG316 Cable
  • 产品名称: Model Number :SMA-C-KY1.5

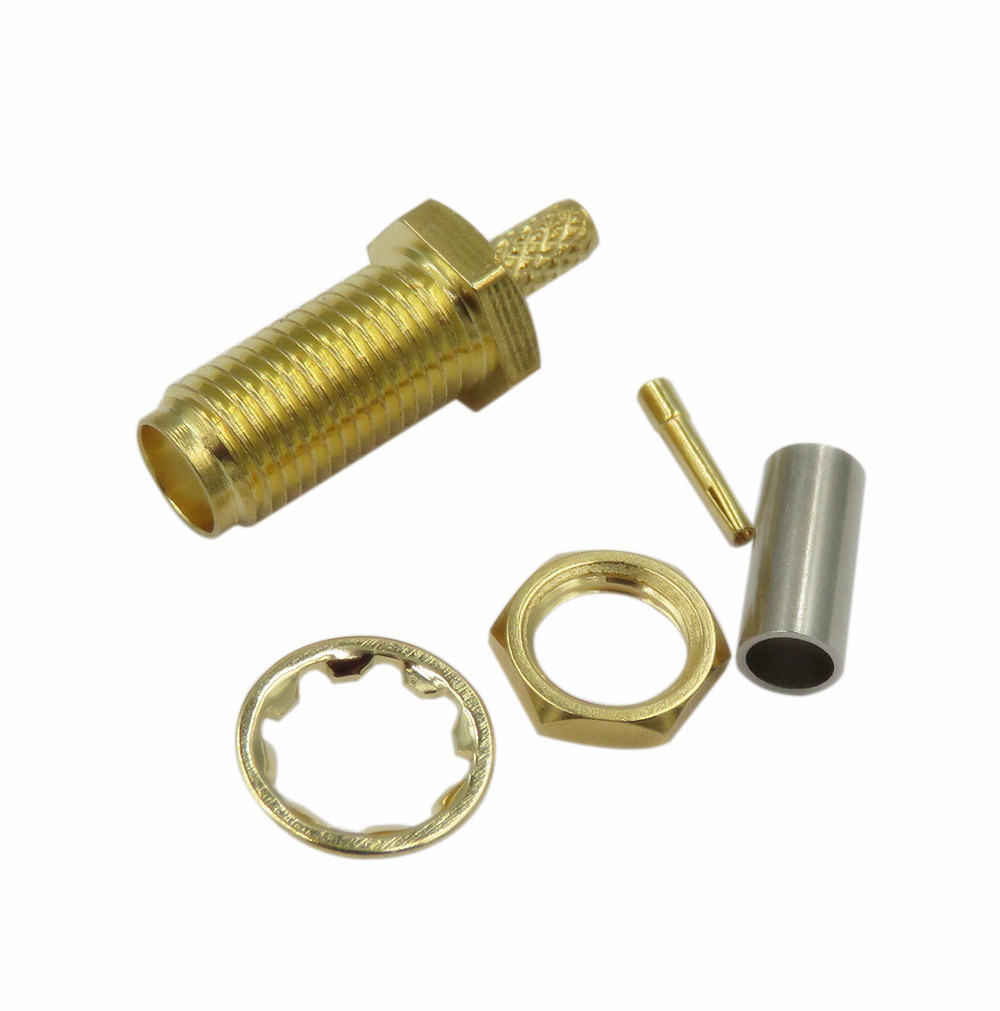

  SMA Female Crimp Bulkhead Connector For RG316 Cable

  (Contact attachment:Inner:soldering ;Outer:crimp)

Model No. SMA-C-KY1.5
Interface  IEC 60169-15
Electrical
Characteristic Impedance  50ohm
Frequency Range                                             DC-12.4GHz
VSWR            1.25@DC-3000MHz
Working Vlotage  335V RMS,50Hz,at sea level
Dielectric Withstanding Voltage 1000V RMS,50Hz,at sea level
Dielectric Resistance   5000MΩ
Contact Resistance    Center Contact 3mΩ   Outer Contact 2.5 mΩ
Mating
Mechanical
Durability   Mating cycles  500
Material and Plating
Parts Name Material  Plating
Body Brass  Au
Insulator  PTFE
Inner Conductor  Phosphor Bronze   Au
Lock nut   Brass  Au
Washer  Brass  Au
Ferrule Annealed Copper Ni
Environmental
Operating Temperature -40 ℃~-85
RoHS Compliant      Yes
