  • 产品名称: SMA Male Straight Connector For RG405( .086”) Semi-Rigid Cable
  • 产品名称: Model Number: SMA-JB2

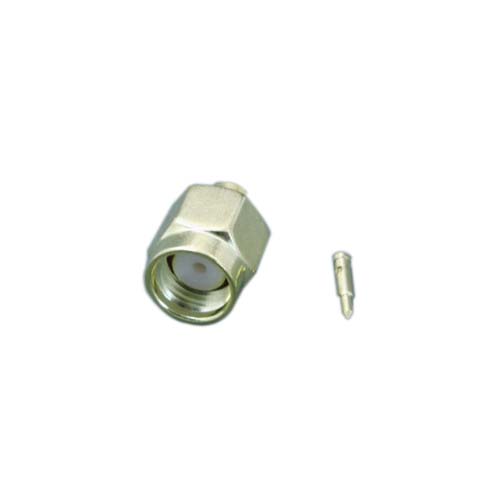

    SMA Male Straight Connector For .086” Semi-Rigid Cable

       (Contact attachment:Inner:soldering ;Outer:soldering)

Model No.  SMA-JB2
Interface  IEC 60169-15
Electrical
Characteristic Impedance   50ohm
Frequency Range                                           DC-18GHz
VSWR          1.20@DC-6GHz;1.35@6-18GHz
Dielectric Withstanding Voltage   ≥1000V RMS,50Hz,at sea level
Working Vlotage    335V RMS,50Hz,at sea level
Dielectric Resistance     ≥5000MΩ
Contact Resistance    Center Contact 3mΩ   Outer Contact 2.5 mΩ
Mechanical
Durability   Mating cycles  500
Material and Plating
Parts Name  Material  Plating
Body  Brass  Au
Insulator   PTFE
Spacer     PTFE
Inner Conductor   Phosphor copper Au
Coupling nut    Brass  Au
Gasket     Silicone rubber
Environmental
Operating Temperature  -40 ℃~-85
RoHS Compliant       Yes
