  • 产品名称： SMA Female Crimp 12.7mm SQ Flange Connector For RG316 Cable
  • 产品名称： Model Number : SMA-C-KF1.5

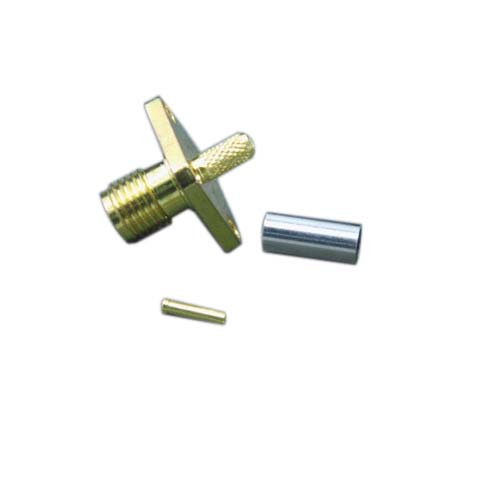

   SMA Female Crimp 12.7mm SQ Flange Connector For RG316 Cable

      (Contact attachment:Inner:soldering ;Outer:crimp)

Model No.  SMA-C-KF1.5
Interface  IEC 60169-15
Electrical
Characteristic Impedance   50ohm
Frequency Range                                             DC-12.4GHz
VSWR          ≤1.25@DC-3GHz
Dielectric Withstanding Voltage  ≥1000V RMS,50Hz,at sea level
Working Voltage   335V RMS,50Hz,at sea level
Dielectric Resistance    ≥5000MΩ
Contact Resistance    Center Contact ≤3mΩ   Outer Contact ≤2.5 mΩ
Mechanical
Durability   Mating cycles  ≥500
Material and Plating
Parts Name   Material   Plating
Body  Brass   Au
Insulator   PTFE  —
Center conductor   Phosphor copper  Au
Ferrule  Annealed copper    Ni
Environmental
Operating Temperature  -40 ℃～+85  ℃
RoHS Compliant   Yes
