  • 产品名称： SMA Female 12.7mm SQ Flange Connector For RG402 Cable
  • 产品名称： Model Number: SMA-KFB3

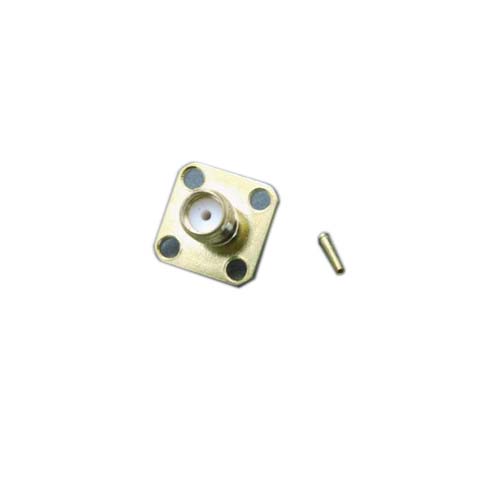

 SMA Female 12.7mm SQ Flange Connector For RG402 Cable

        (Contact attachment:Inner:soldering ;Outer:soldering )

Model No.  SMA-KFB3
Interface  IEC 60169-15
Electrical
Characteristic Impedance   50ohm
Frequency Range                                            DC-12.4GHz
VSWR          ≤1.20@DC-6GHz
Dielectric Withstanding Voltage  ≥1000V RMS,50Hz,at sea level
Working Voltage   335V RMS,50Hz,at sea level
Dielectric Resistance    ≥5000MΩ
Contact Resistance    Center Contact ≤3mΩ   Outer Contact ≤2.5 mΩ
Mechanical
Durability   Mating cycles  ≥500
Material and Plating
Parts Name  Material   Plating
Body  Brass   Au
Insulator   PTFE —
Center conductor   Phosphor copper  Au
Environmental
Operating Temperature - 40 ℃～+85  ℃
RoHS Compliant   Yes
