  • 产品名称： 240mm Rg316D Jumber Cable Assembly With SMA Male Right Angle And MCX Male Right Angle Connectors
  • 产品名称： Model Number: RG316D-SMAMR-MCXMR-24CM

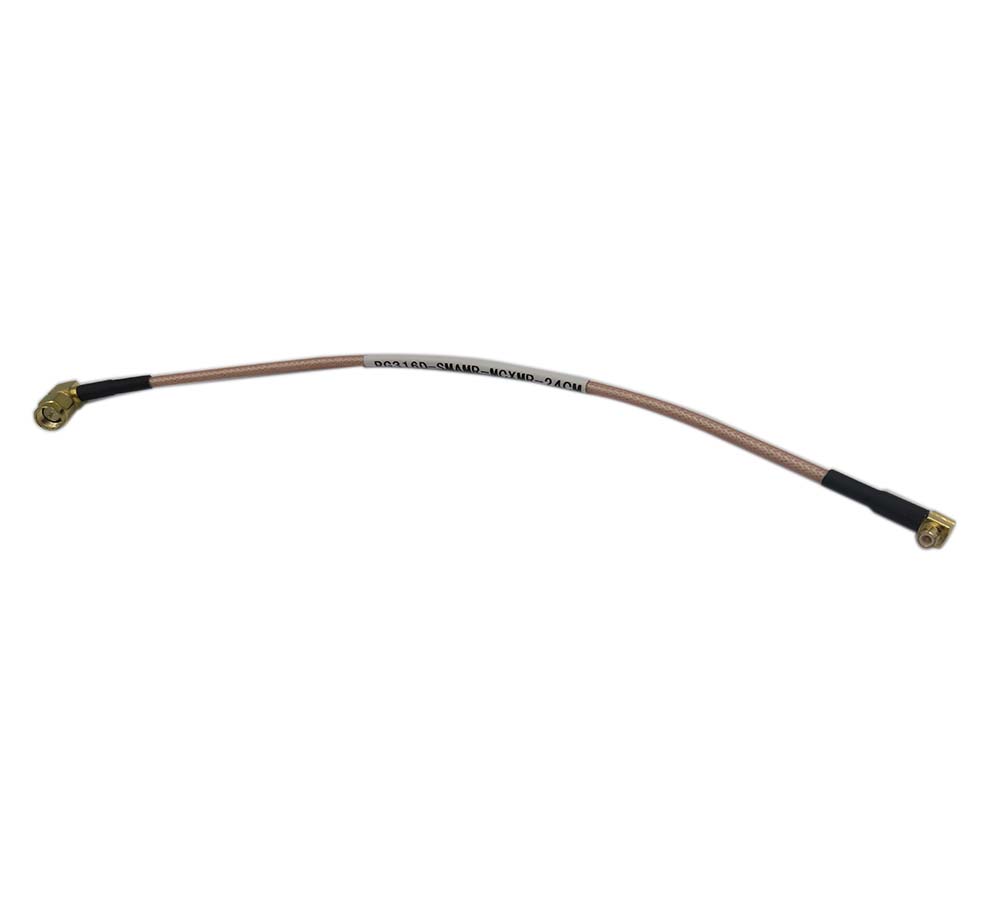

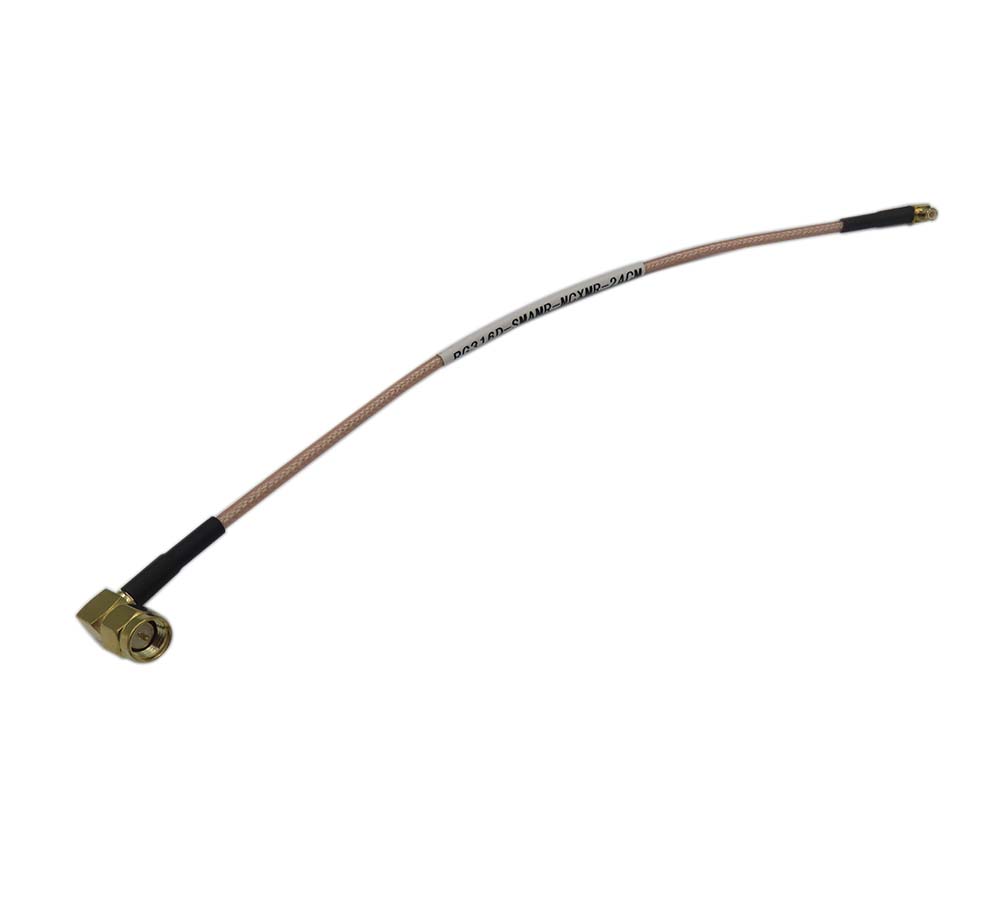

       240mm Rg316D Jumber Cable Assembly With SMA Male Right Angle And MCX Male Right Angle Connectors

Model No.  RG316D-SMAMR-MCXMR-24CM
Connector Type  SMA Male Right Angle Connector
 MCX Male Right Angle Connector
Cable Type(Name)  RG316D Cable
Cable Length   240mm (Customized Length Available)
Connectors Interface  IEC 60169-15/IEC 61169-36
Characteristic Impedance    50 ohm
Tipical Frequency Range  DC-6GHz
VSWR  ≤1.25@DC-3GHz;≤1.45@3-6GHz;
Dielectric Withstanding Voltage   ≥750V RMS,50Hz,at sea level
Dielectric Resistance   ≥1000MΩ
Durability    ≥500 cycles
Material and Plating (Connectors)
Parts Name  Material   Plating
Body  Brass   Au
Insulator   PTFE  —
Center conductor   Phosphor Bronze    Au
Coupling nut      Brass  Au
Ferrule  Brass   Ni
Shrinkable tube   PET    —
Operating Temperature  -45 ℃-+85  ℃
Weatherproof Rate       IP67
RoHs Compliant   Yes
