产品名称： 460mm Rg316D Jumber Cable Assembly With MCX Male Right Angle and MCX Male Straight Connectors
产品名称： Model Number: RG316D-MCXMR-MCXM-46CM

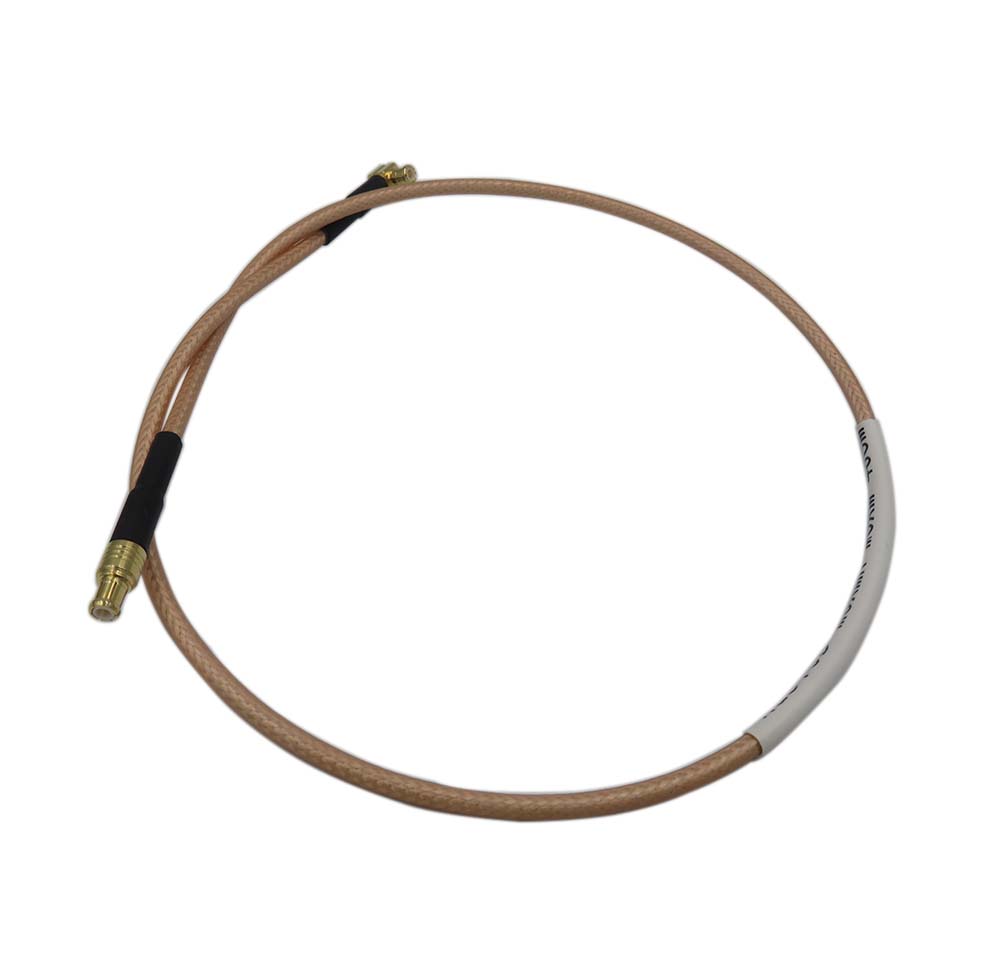

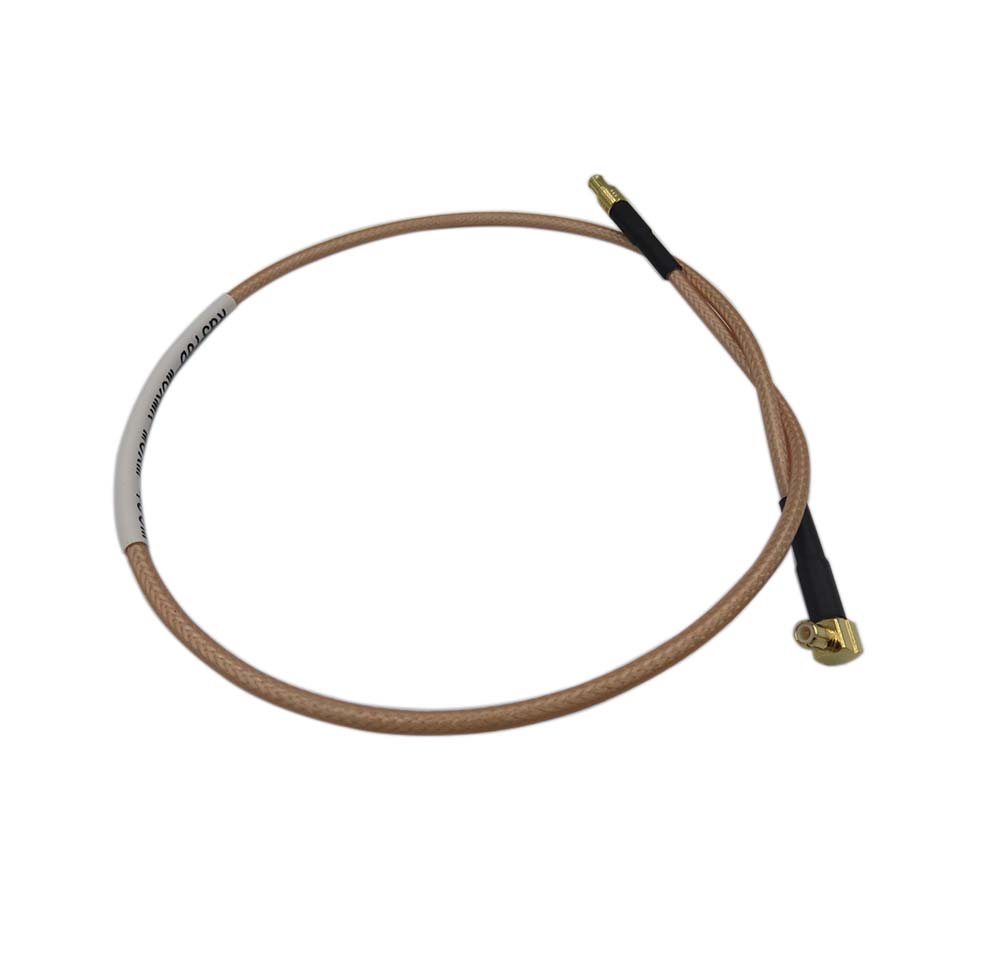

460mm Rg316D Jumber Cable Assembly with MCX Male Right Angle and MCX Male Straight Connectors

Model No.	RG316D-MCXMR-MCXM-46CM
Connector Type	MCX Male Right Angle Connector
	MCX Male Straight Connector
Cable Type(Name)	RG316D Cable
Cable Length	460mm (Customized Length Available)
Connectors Interface	IEC 61169-36
Characteristic Impedance	50 ohm
Tipical Frequency Range	DC-6GHz
VSWR	≤1.2@DC-3GHz;≤1.4@3-6GHz;
Dielectric Withstanding Voltage	≥750V RMS,50Hz,at sea level
Dielectric Resistance	≥1000MΩ
Durability	≥500 cycles
Material and Plating (Connectors)
Parts Name	Material	Plating
Body	Brass	Au
Insulator	PTFE	—
Center conductor	Phosphor Bronze	Au
Coupling nut	Brass	Au
Ferrule	Brass	Ni
Shrinkable tube	PET	—
Operating Temperature	-45 ℃-+85 ℃
Weatherproof Rate	IP67
RoHs Compliant	Yes
